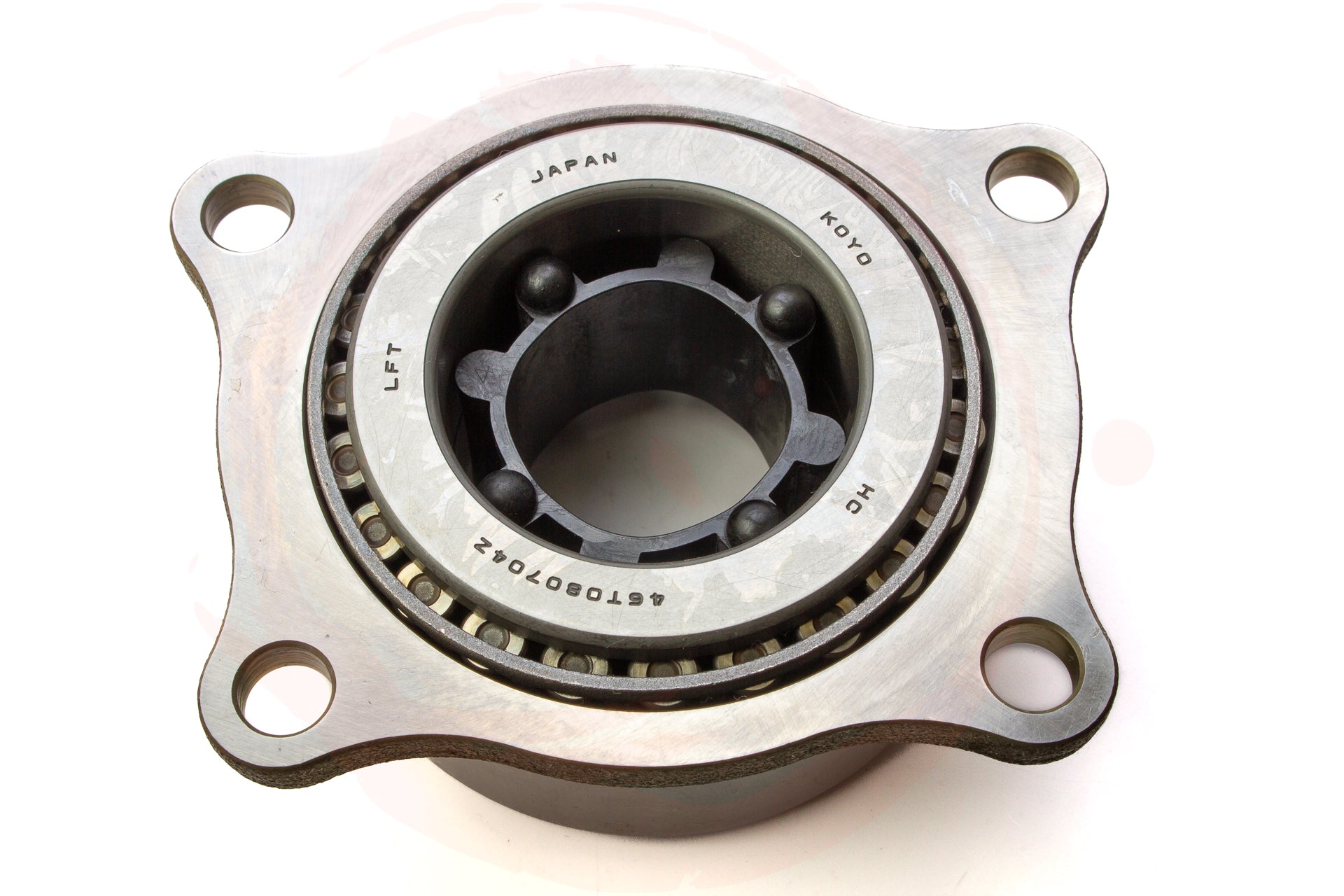

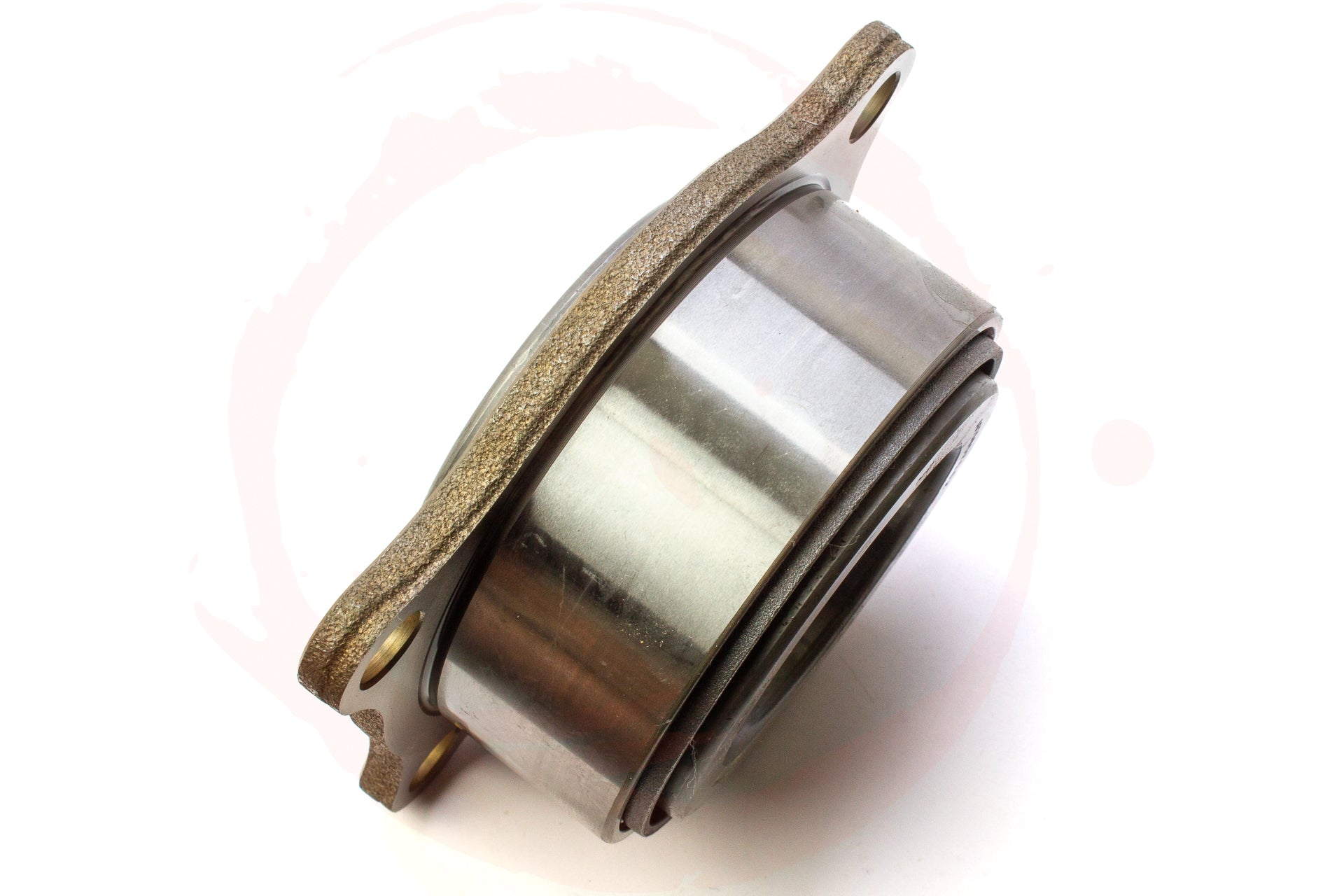

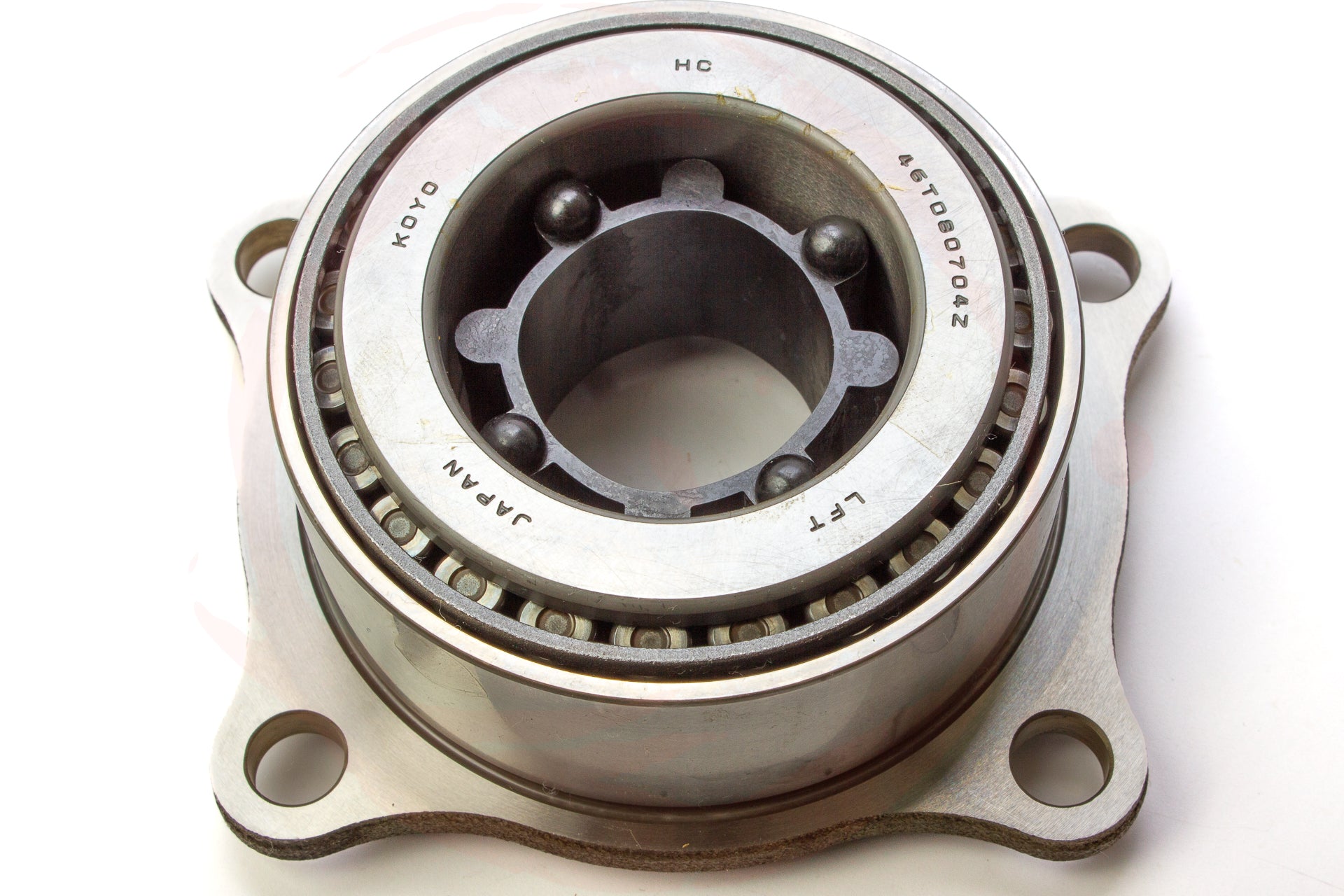

Driven Shaft Rear Support Bearing 5MT

4-Bolt flanged double row tapered roller bearing with bearing dimensions of 42 x 74 x 40mm. This is the rear support bearing for the driven (output) gear shaft on 5-speed applications.  Two variations of this bearing existing depending on the application (please select when ordering).

Always replace if the bearing feels rough or is noisy or shows signs of high temperatures or other damage.  This bearing presses on to the rear of the output (driven) shaft between the 4th and 5th driven gears.  The 4-bolt flange bolts to the rear of the transmission case and shims between the flange and the case control the pinion depth.

Manufacturer Part No: 806342040 (MY85-08), 806342050 (MY09-23)

What it fits:

• Impreza/WRX/STI 5MT MY93-23
• Forester 5MT MY98-13
• Legacy/Outback 5MT MY89-10
• Legacy/Outback 6MT MY10-12
• Baja 5MT MY03-06
• Crosstrek 5MT MY13-17
• RX Turbo MY85-89
• XT Turbo MY85-87
• RS Turbo AWD MY85-89
