XShift Sequential Accessories Package

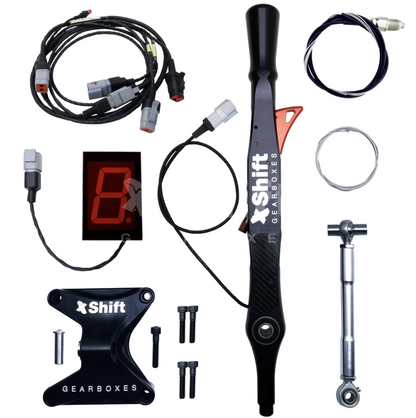

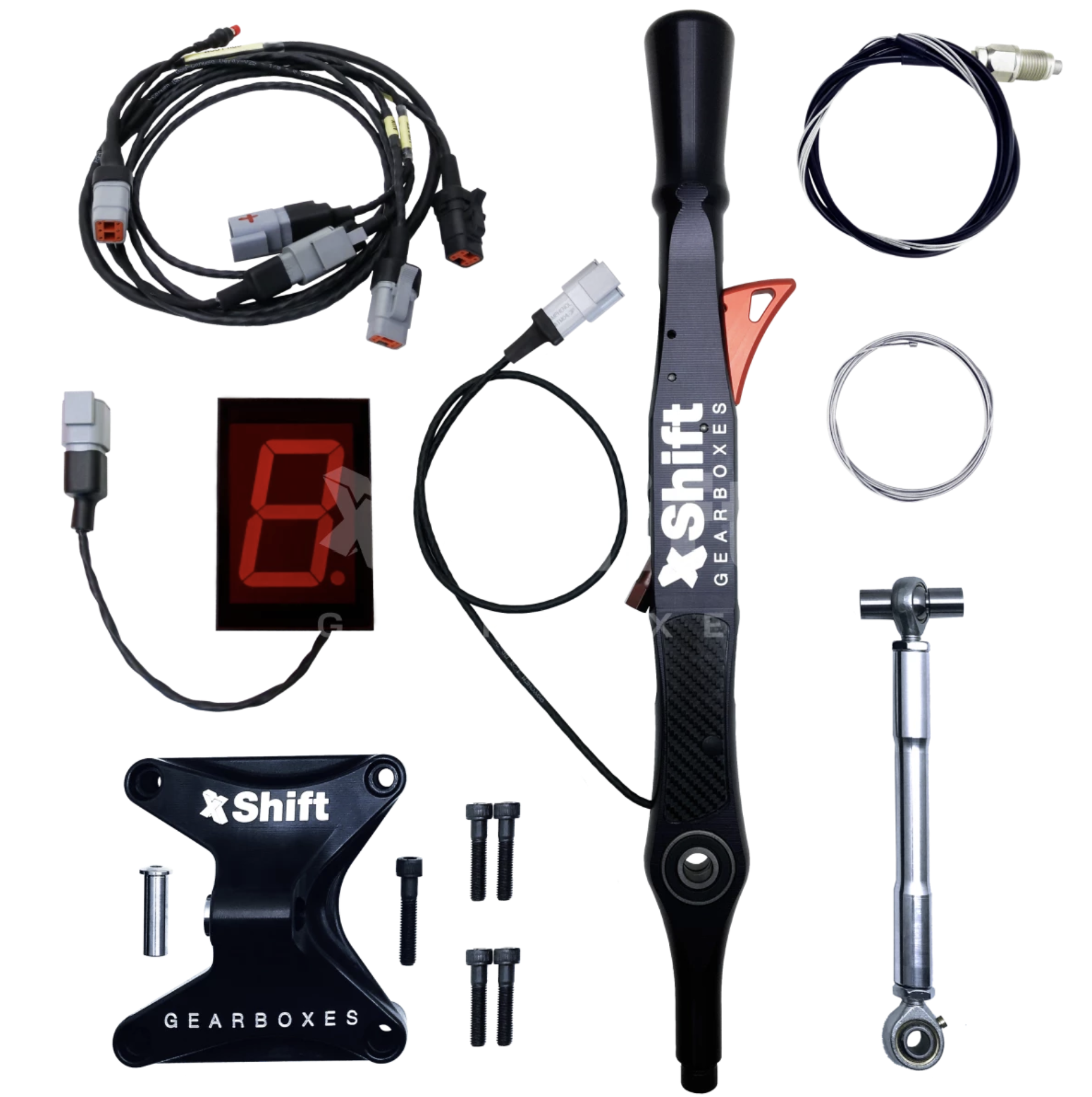

The X Shift Gearboxes sequential accessories package contains the sequential lever assembly, programmable LED gear position display, and motorsport-grade wiring harness loom.  The accessories package is necessary to complete the full installation of an X Shift sequential gearbox.  This package can be used with any of the X Shift Subaru STI sequential gearbox options.

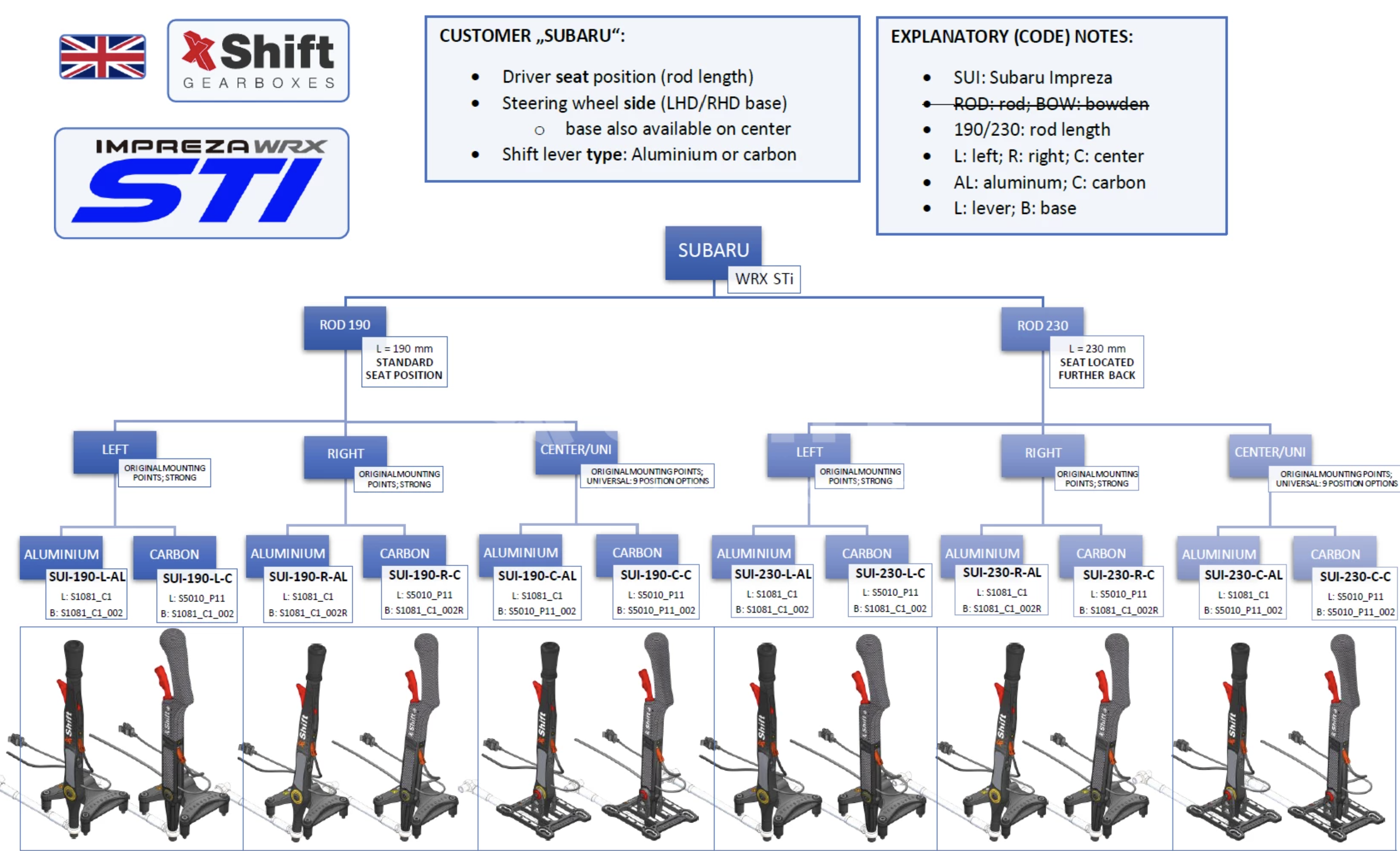

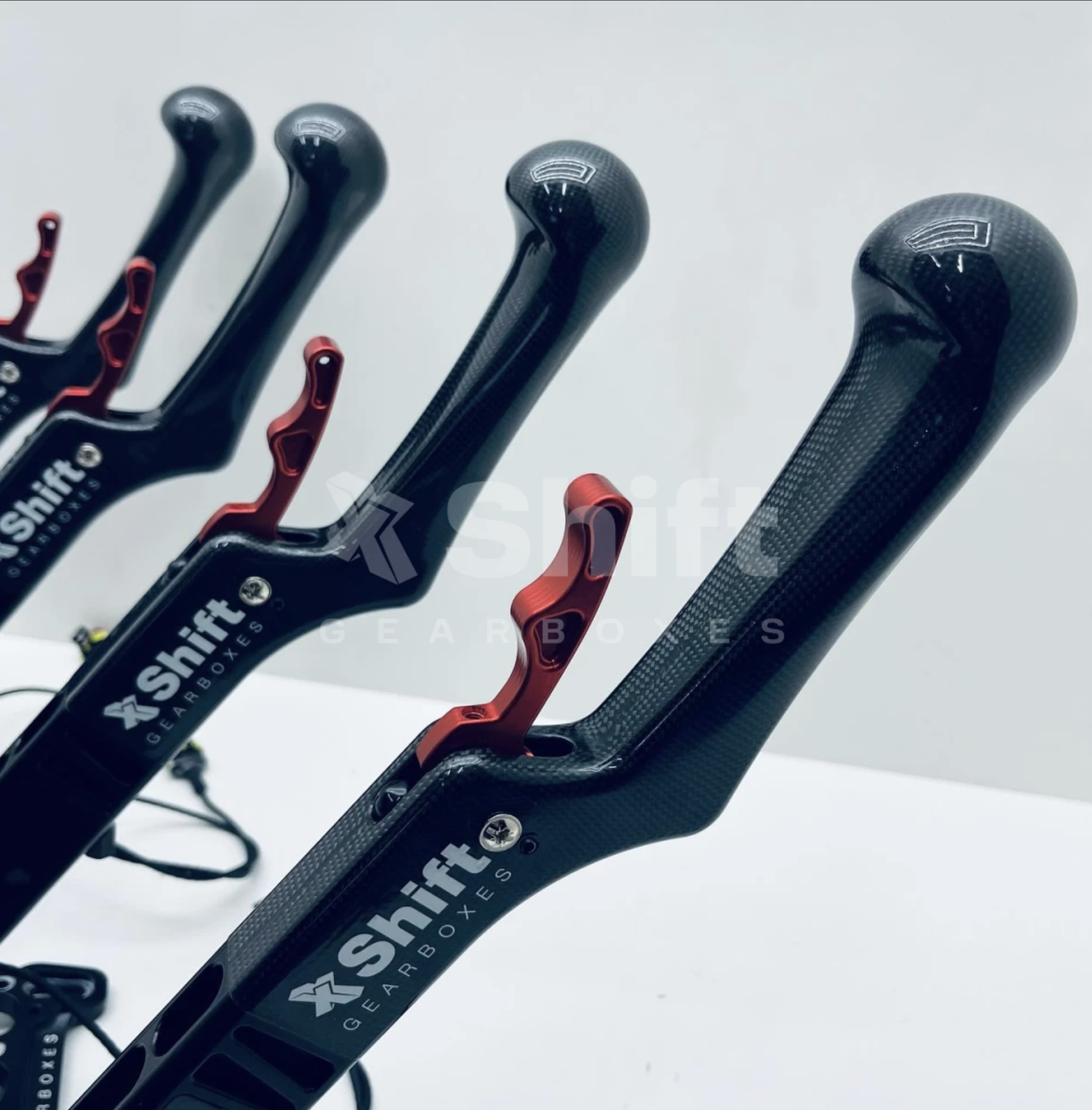

The shift lever is available either in aluminum or ergonomic carbon fiber design.  Each lever features integrated electronics (strain gauge) with 0-5V output for integration with an ECU or gearbox controller.  The voltage output can be used for ignition cut and flatshifting strategies.  Optional lever base designs and shift rod length allows for adaptation of the lever position according to lateral seat location (LHD vs RHD) and longitudinal position.  Please view the image indicating the available design options and their part numbers.  SUI-190-L-AL or SUI-190-L-C will be supplied as standard.  If you wish to purchase a different shifter please indicate the required part number in the notes with your order.

The gear position display shows the current gear position based on the sensor integrated into the X Shift sequential barrel shifter mechanism.  A light sensor provides automatic dimming according to ambient light conditions.  The display is normally provided as a standard size of 60x90x33mm but an option mini version can be substituted on request that has a smaller size of 52x70x26.5mm.  Please indicate in the order notes if you require the mini version.

Accessories packages are all made to order by X Shift and typically will ship together with the sequential gear kit.  If ordering separately please inquire about the specific lead time.
